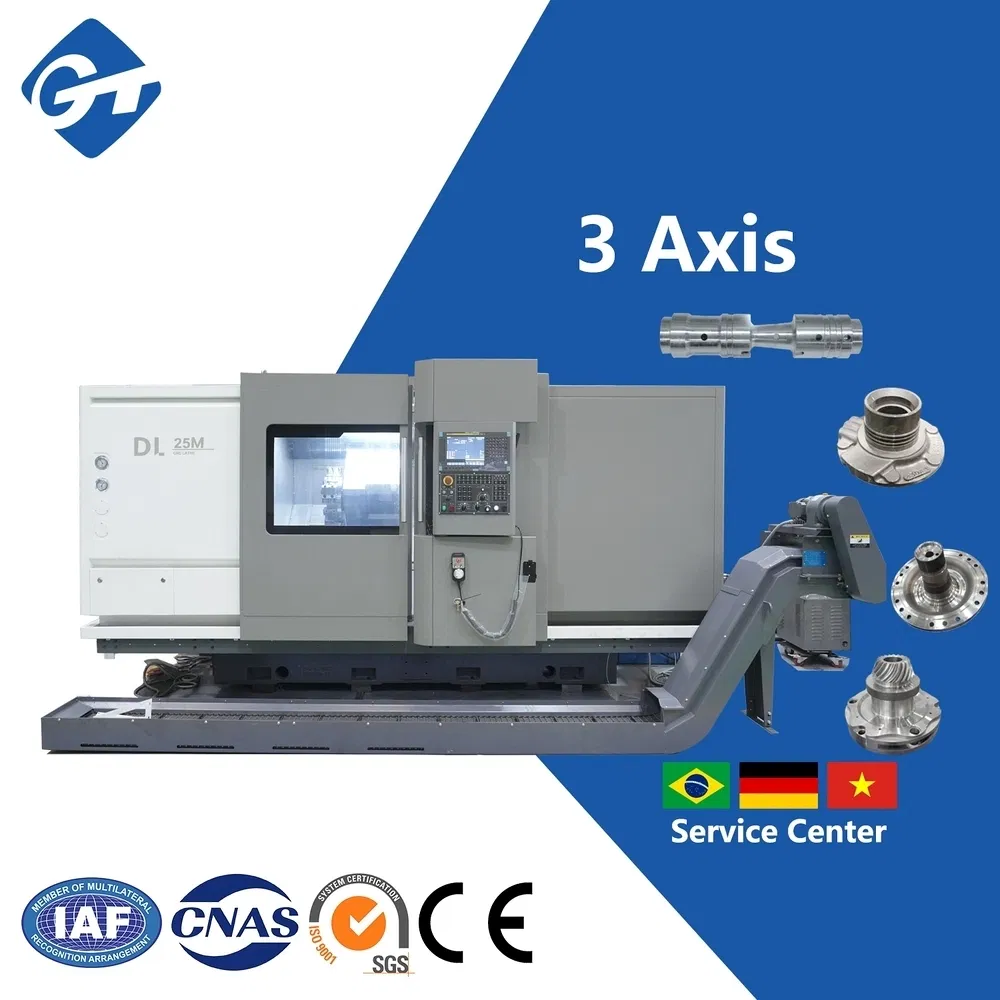

Dmtg Anti-Vibration Dl25mh Small CNC Turning Machining Center for High-Strength Cutting

1 / 5

Dmtg Anti-Vibration Dl25mh Small CNC Turning Machining Center for High-Strength Cutting

Customization:	Available
After-sales Service:	Local and Online After-Sales Service
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️ Basic Info.

Model NO.	DL25MH CNC Turning Center
Type	CNC Turning Center
Processing Accessory	Chuck CNC Lathe
Guide Rail	Box Way
Tool Holder	12-Position Live Tooling Turret
Power Source	Electric
Controlling Mode	CNC
Automatic Grade	Automatic
Precision	High Precision
Certification	CE, ISO 9001
Max. Swing Diameter Over Bed	Φ520 mm
Chuck Size	10 Inch

📝 Product Description

SALNT BED CNC LATHE

This inclined bed CNC lathe is a two-axis linkage, semi-closed loop CNC lathe. The main machine bed is integrally cast, and the bed guide rails are arranged at a 45° tilt, which has high rigidity. The control system adopts FANUC 0i-TF, GSK, and other systems and AC servo drive, which can perform various turning processes on shaft parts within φ260mm and disc parts within φ300mm.

COMPREHENSIVE MACHINING EXCELLENCE

✓

Designed to handle a wide range of turning, threading, and complex processes for diverse parts and materials.

✓

Flexible machine configurations enable efficient production of both simple and intricate components.

✓

Advanced drive systems and robust construction ensure consistent precision and superior surface finish.

✓

Reliable electrical and drive systems deliver stable power and dependable continuous operation.

✓

Maintains high operational productivity with minimized disruptions and consistently high-quality results.

📊 Technical Parameters

Product Name	DL25MH CNC Turning Center
Max. Swing Diameter Over Bed	Φ520 mm
Max. Turning Diameter (Shaft/Disc)	Φ310/Φ500 mm
Max. Turning Length	1000/1500 mm
Guideway Type	Box Way/Linear Guideway(1000)

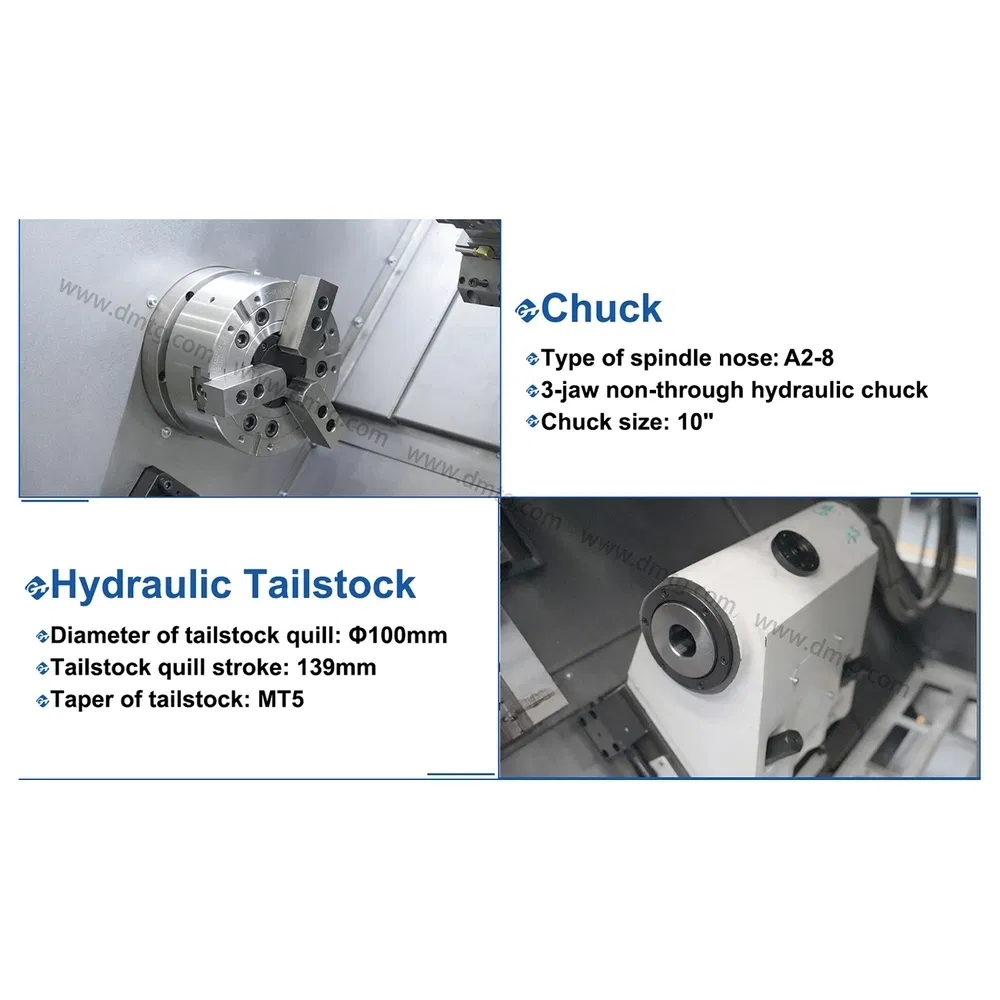

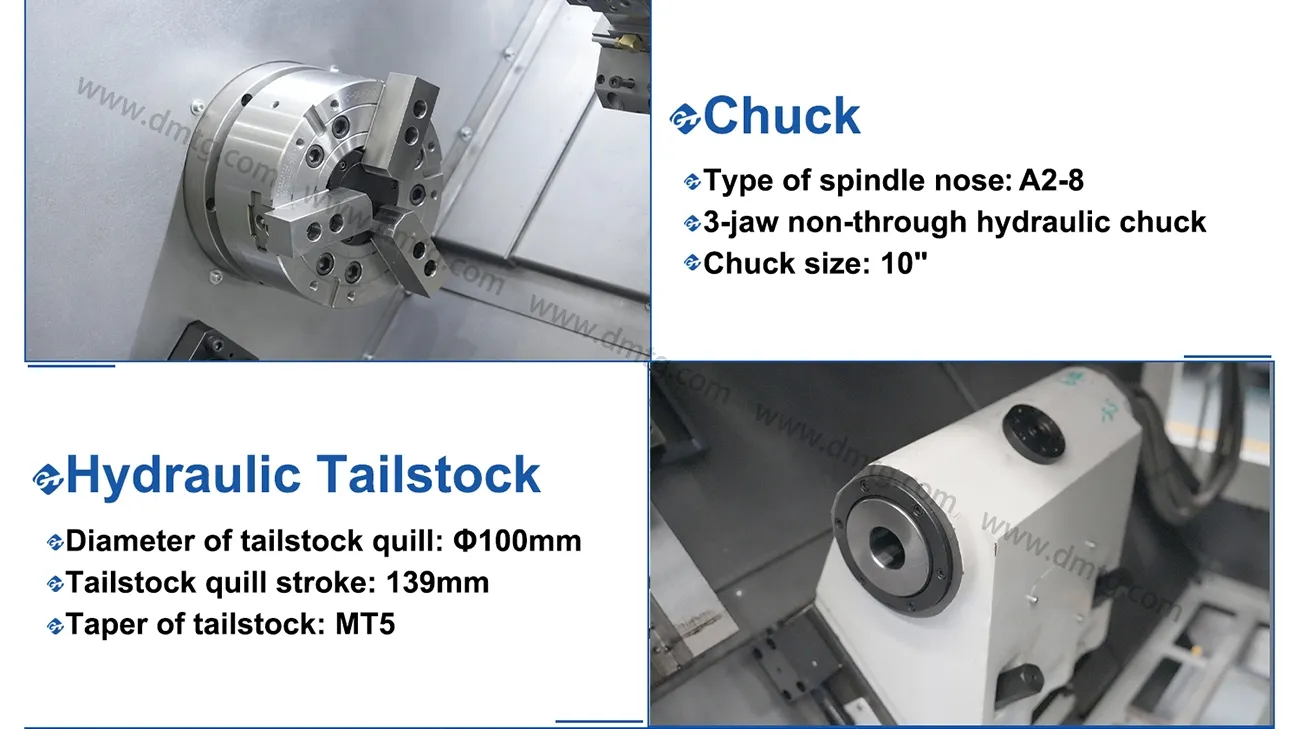

Type Of Spindle Nose	A2-8

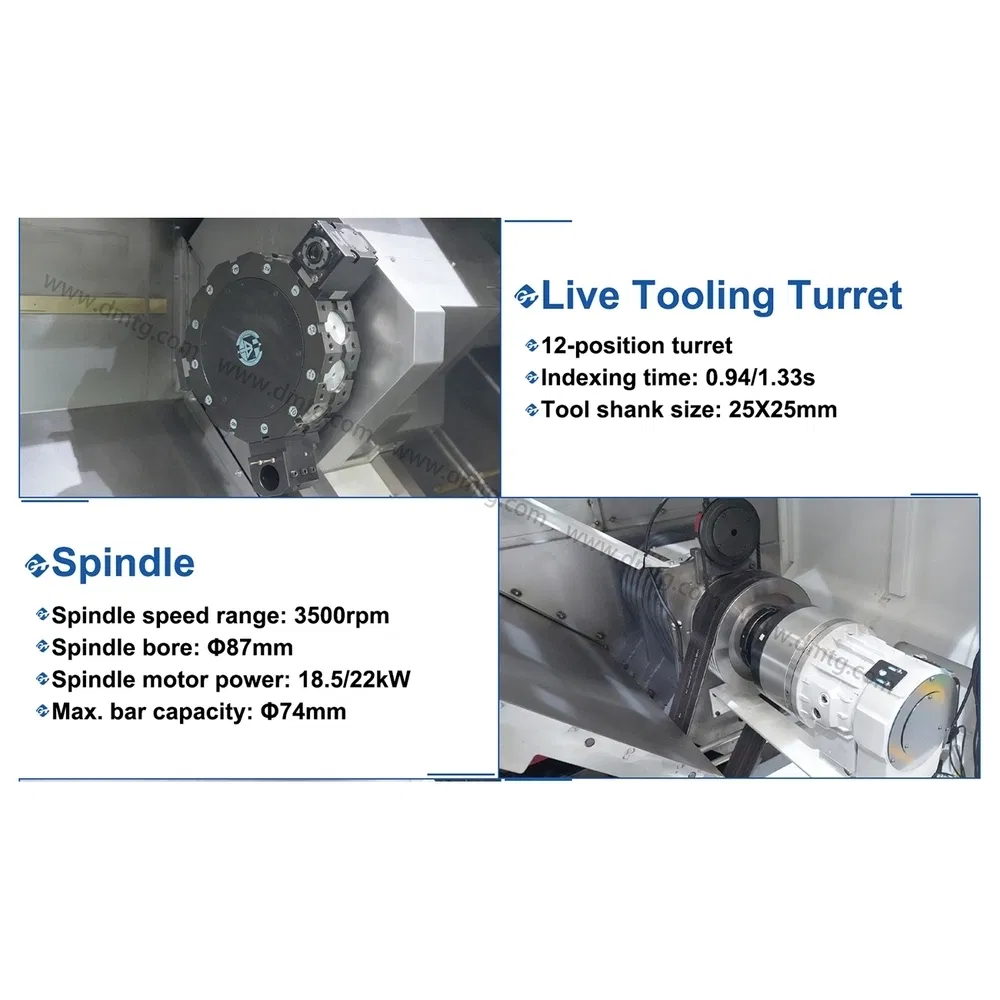

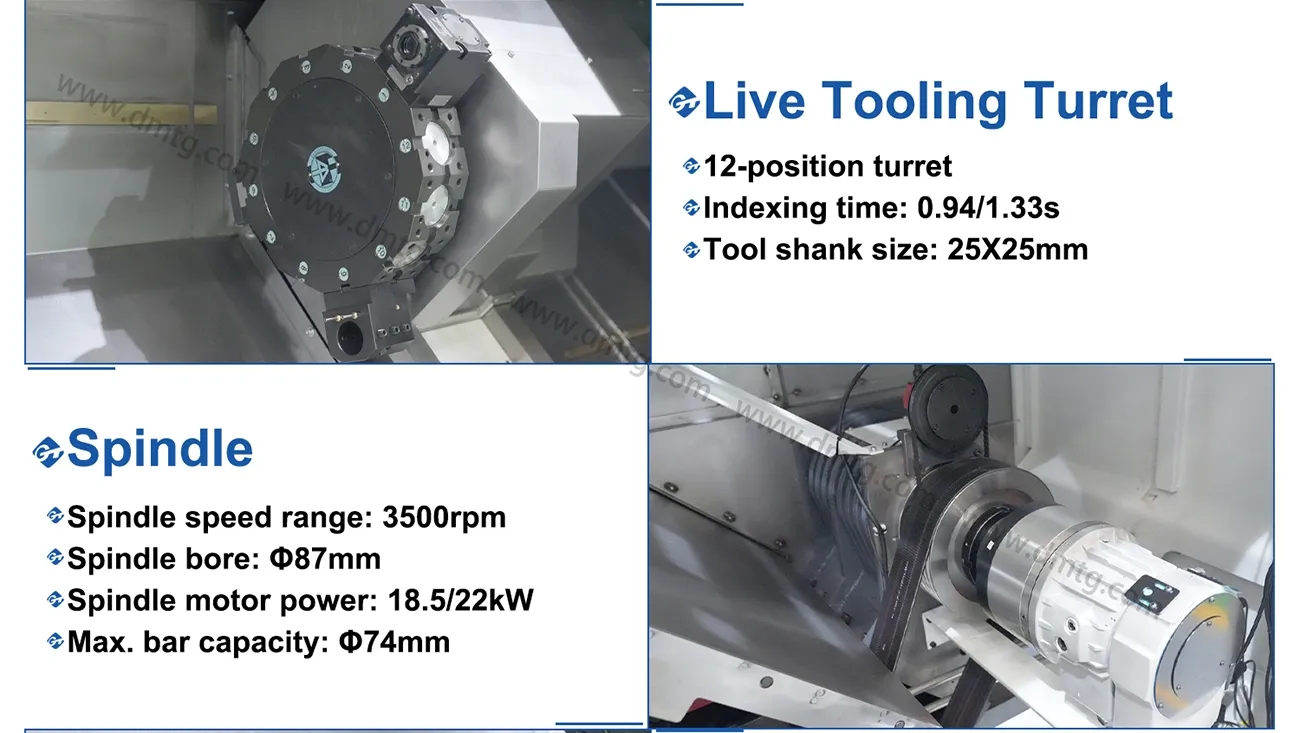

Spindle Speed Range	3500 rpm
Spindle Bore	Φ87 mm
Spindle Motor Power	18.5/22 kw
Turret Type and Tool Numbers	12-Position Livetooling Turret

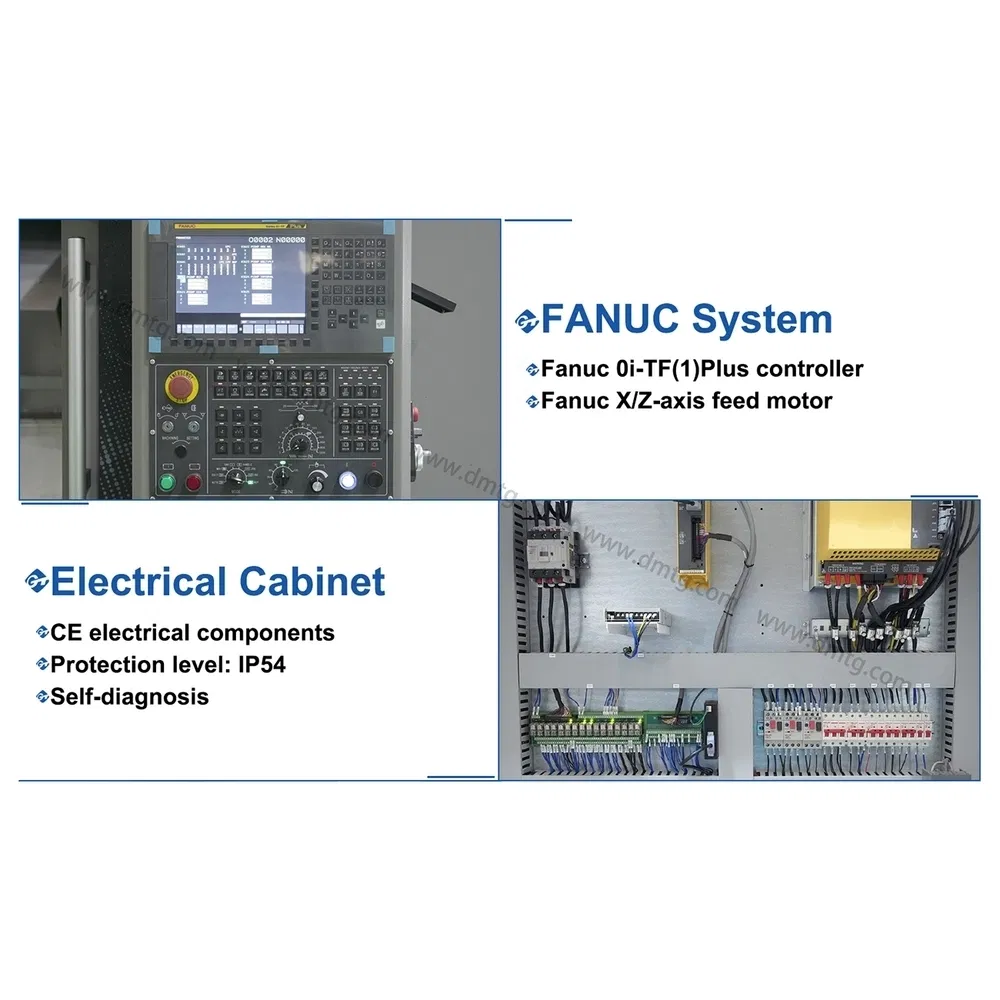

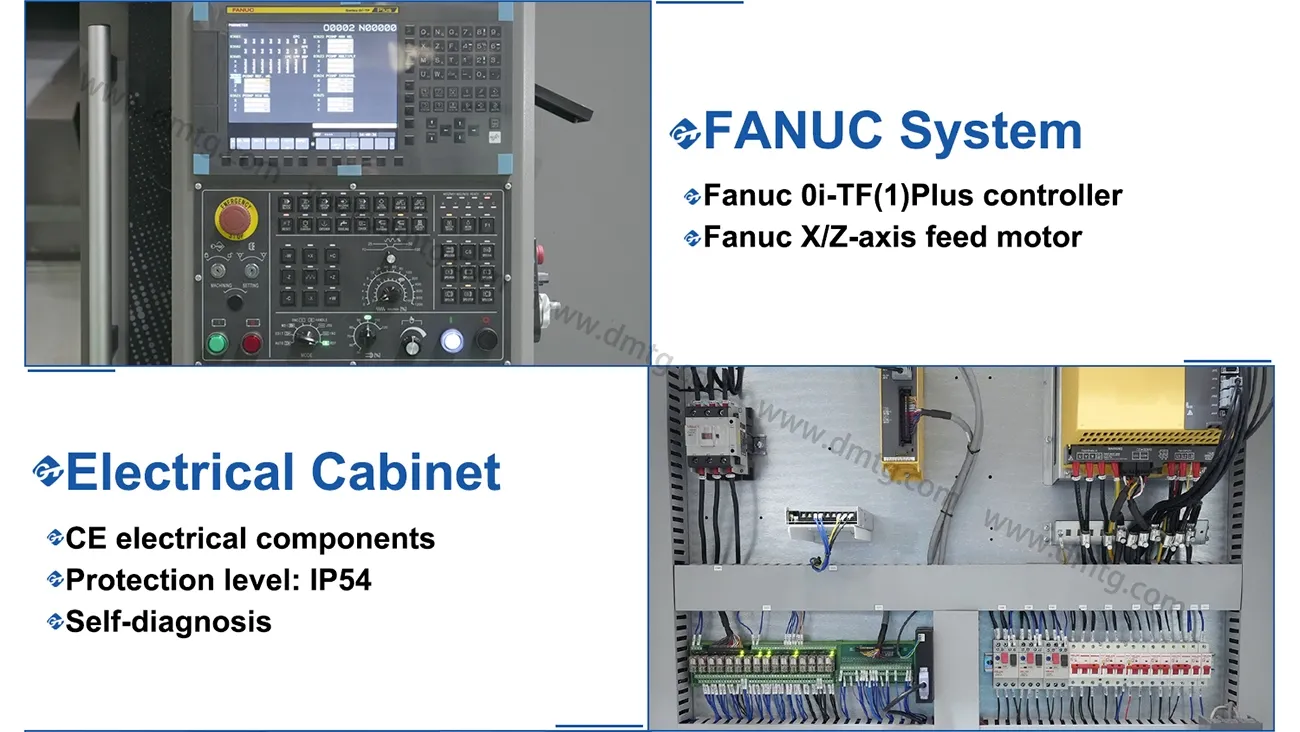

CNC Controller	FANUC 0I-TF(1) PIus / SIEMENS 828D
Machine Weight	7800/8300 kg

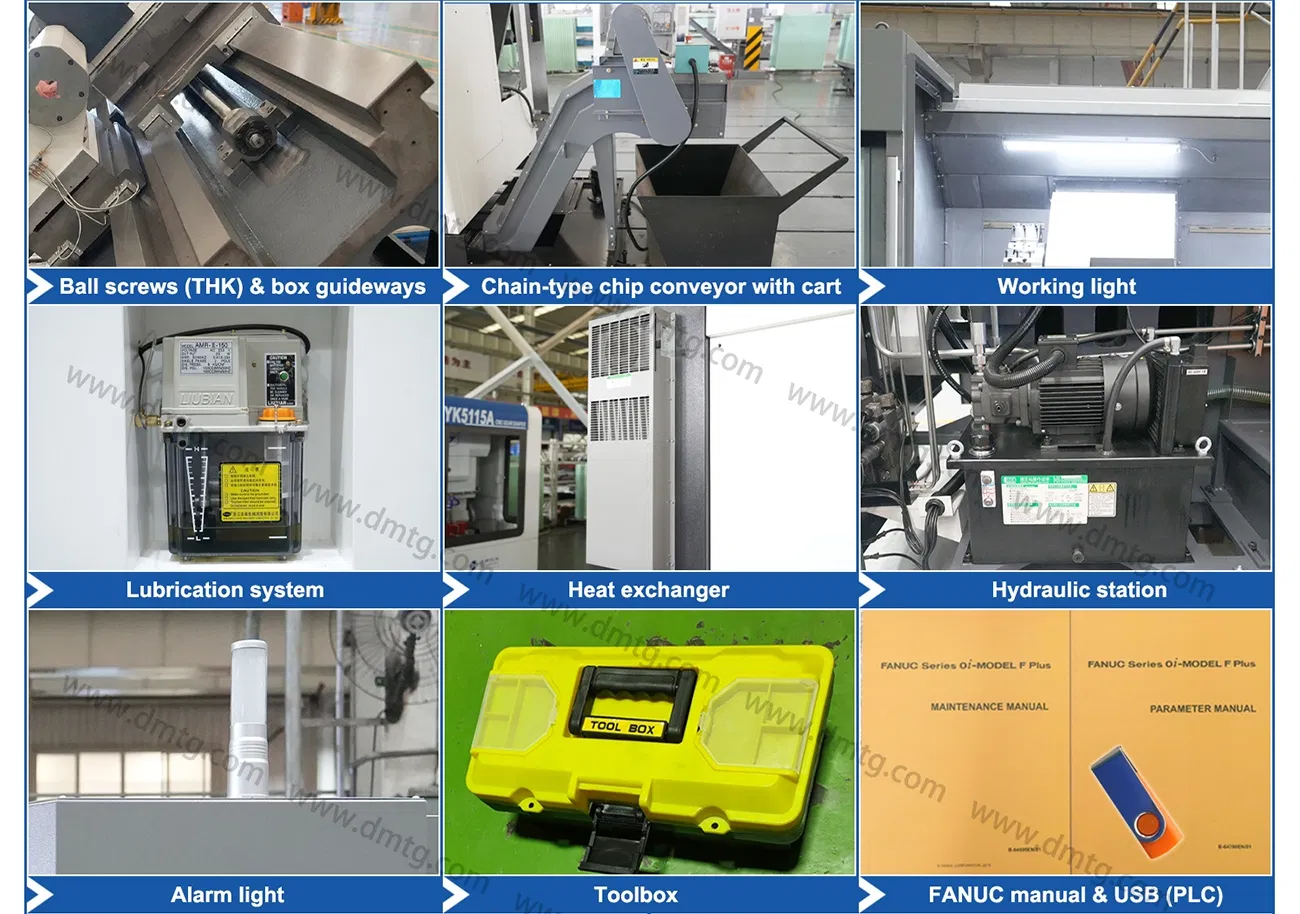

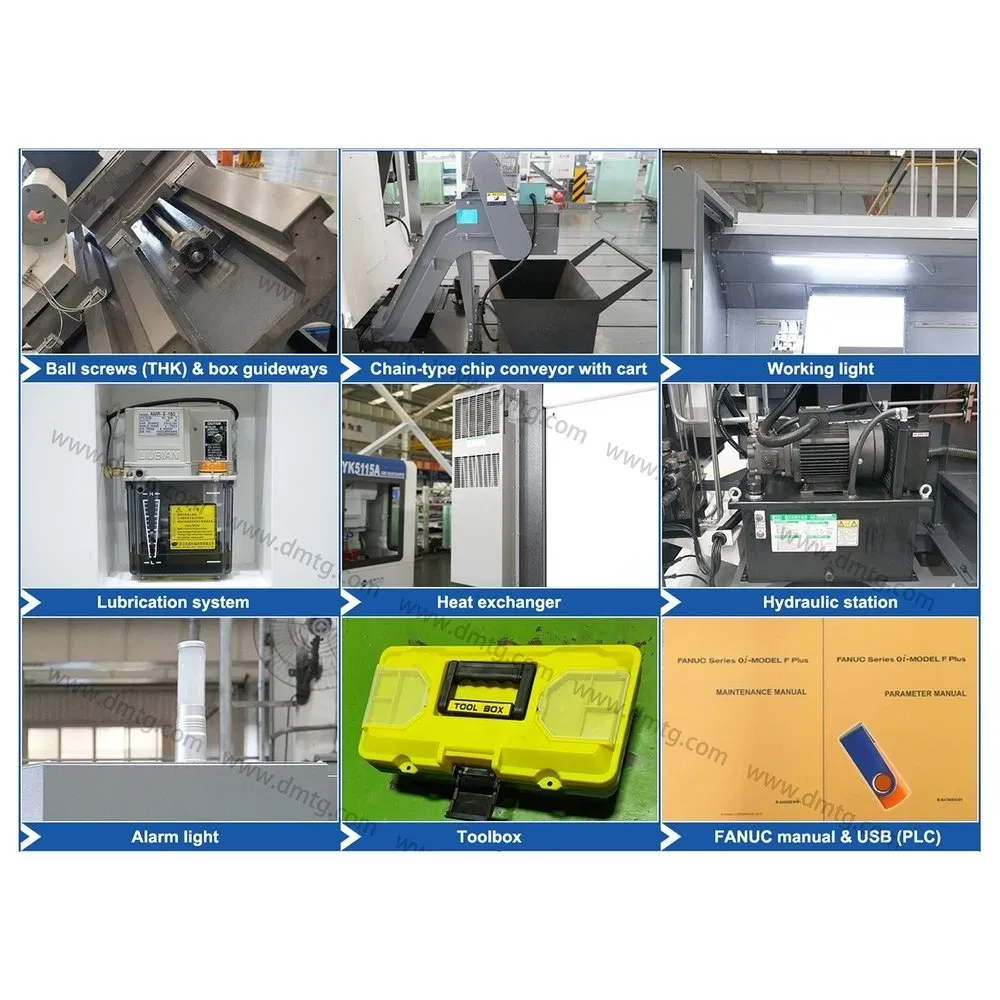

📷 Detailed Photos

❓ FAQ

Q1: Are you a factory or a trader?

A: We are a manufacturer integrating industry and trade. Welcome to visit our company.

Q2: Can I add my LOGO to the product?

A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.

Q3: What payment methods do you support?

A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.

Q4: What are your modes of transportation?

A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or according to your specific requirements.

Q5: How can I get an accurate quotation?

A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.

Q6: What is the standard lead time for production?

A: Production time varies based on customization requirements, typically ensuring high-quality manufacturing standards are met for every unit.
